6 Wheel Telescopic Boom Truck Mounted Crane
Telescopic boom truck mounted crane means truck mounted straight arm. Telescopic boom is very common boom type. Telescopic boom truck mounted crane can lift from 2 ton to 20 ton goods or equipment. 6 wheel telescopic boom truck mounted crane can transport goods or equipment from 2 ton to 10 ton. 6 wheel telescopic boom truck mounted crane can be equipped with Palfinger, Hiab, Unic, XCMG,Shimei, CLW,etc Chinese and foreign famous brand cranes
- Factory direct price and custom configuration
- Strict inspection before delivery
- Export documents and shipping support
- Spare parts and after-sales technical support

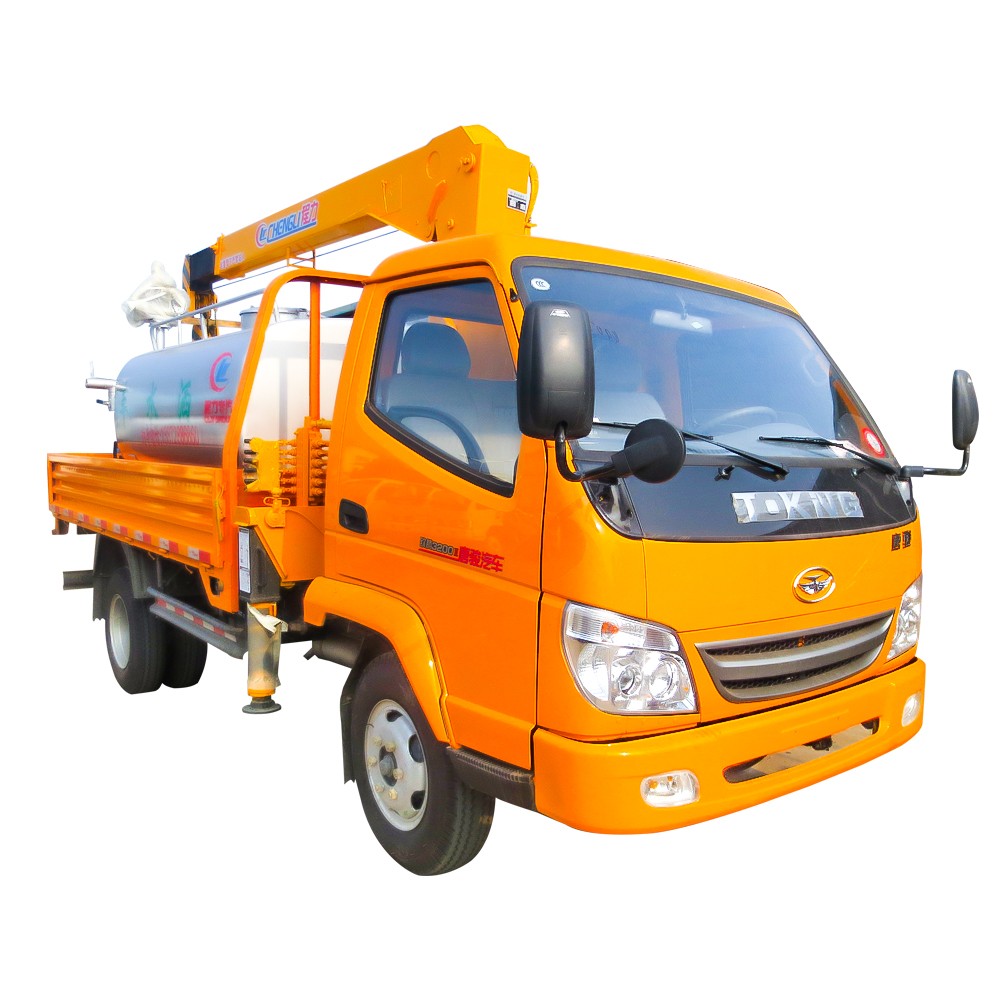

6 Wheel Telescopic Boom Truck Mounted Crane
Product Features
T-King 6 wheel crane truck chassis with low cost
Optional crane brand: XCMG, UNIC, Hiab, Shimei, CLW,etc;
Can optional add water tank for watering
Optional more configuration: aerial working chair, working basket, remote control device and kinds of fixtures or grippers.
Main parameter
Product Name | 6 Wheel Telescopic Boom Truck Mounted Crane |
Driving Type | 4×2 |
Weight / | |
Curb weight(kg) | 3000 |
Payload weight(kg) | 3000 |
Dimensions | |
Wheelbase(mm) | 3300 |
Overall Dimension(mm) | 5997×2280×3050 |
Cargo box Dimension(mm) | 3670×2200×550 |
Engine | |
Engine brand | DONGFENG CHAOYANG or YUNNEI |
Engine type | 4 stroke, water-cooled, straight line 4 cylinders, diesel |
Chassis | |
Axle Quantity | 2 |
Transmission Type | 5 forwards,1 reverse gear, manual |
Steering Type | LHD with power steering |
Brake system | Air brake |
Tire Spec. & size | 7.00-16, 6 with a spare |
Cab | |
Standard configuration | Flat proof, single row, radio, A/C |
Performance parameter of 6 Wheel Telescopic Boom Truck Mounted Crane | |
Crane parameter | 1.Crane brand optional: UNIC, HIAB, XCMG, SHIMEI, CLW, etc |
2.Crane type: telescopic boom or folded arm type | |
3.Max lift quality(kg):2500 | |
4. Max Lifting Moment(TM):5.25 | |
5.Max. Operating radius（m）:7.9 | |
6.Max. Lifting Height（m）:9.2 | |
7.Supporting Legs: Dual H type front hydraulic outrigger | |
8.Swivel Angle Range: ±360°full rotation | |
9.Safety device: alarm when the rope shrink too tightly | |
